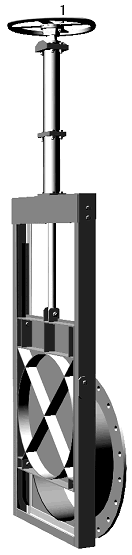

Suitable for end-mounting valves to pipes or
attaching to bulkheads.

Click here for      Installation Dimensions.

FLANGES.  The standard Batescrew flange, listed in the table of dimensions, is a modified ‘Table D’ flange (AS 2129).  It has the table D Pitch Circle Diameter and number of holes, but flange thickness and bolt diameter are reduced, to values appropriate for the specified operating heads. Valves fitted with these may therefore be connected to other standard table D flanges, using the smaller bolts listed in our table.
Flanges complying with other recognised standards, eg. AS 2129 table A; DIN 2530 CL6; ANSI 125; JIS5; may be supplied, at extra cost.  These would normally be used only when required to comply with specific regulations.
LOW COST FLANGES  may also be fitted.  These are rolled from flat mild steel bar, drilled for smaller bolts, at closer intervals.  This type of flange, although non-standard, is suitable for operating heads to ten metres, it provides a cost saving in both material and bolts, but will not interface with standard flanges.

             (On-seating, is pressure against this face) ®

WHEN ORDERING, please specify the following:
Type and size of flange required.
Nominal valve diameter.
Height from bottom of pipe to centre of handwheel.
Surface finish required, if other than galvanised.
Any optional accessories required.
Required maximum head:     1) On-seating pressure.
                                           2) Off-seating pressure.
Any special considerations, supply drawings if necessary.
