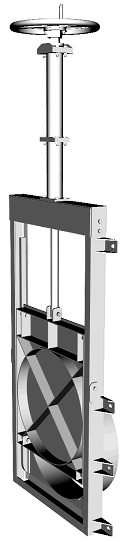

This version is for attachment to a headwall structure or bulkhead.  All fourteen sizes in the High Head range are available in this configuration.
   Click here for   Installation Dimensions.
             Download AutoCAD drawings

Valves are supplied with the following kit:
        Control column support brackets (if necessary).
        Headwall gasket and adhesive.
        Headwall shims and washers.
        All necessary chemical anchor bolts and instructions.
        A masonry drill bit to suit chemical anchor bolts.

WHEN ORDERING, please specify the following:
    Nominal valve diameter.
    Height from bottom of pipe to centre of handwheel.
    Surface finish required, if other than galvanised.
    Any optional accessories required.
    Required maximum head:   1) On-seating pressure.
                                             2) Off-seating pressure.
                   (On-seating, is pressure against this face) ® Any special considerations, supply drawings if necessary.
