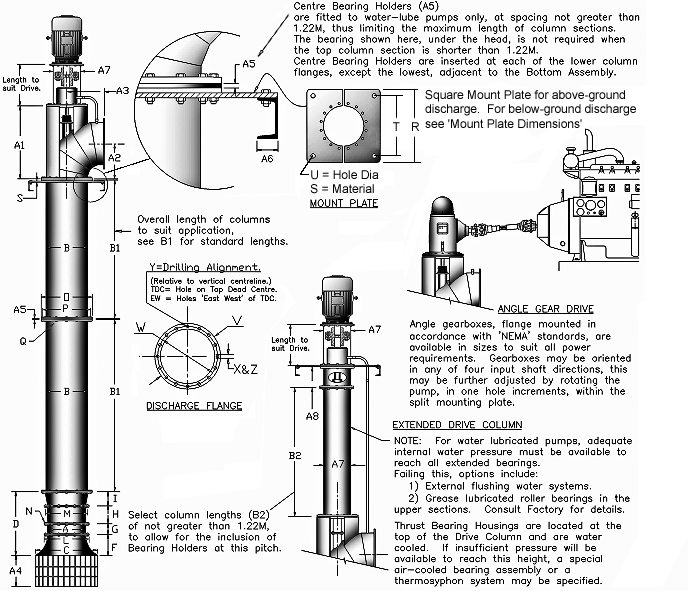

ITEM

mm

ITEM

mm

ITEM

mm

A

Impeller Diameter

279.4

M

Stator Flange PCD

346.1

Y

Disch Bolts EW or TDC

(TDC)

B

Column Diameter

279.4

N

Stator Flange Hole Dia.

14.3

Z

Disch Flng No of Bolts

(12)

C

Bellmouth Diameter

457.2

O

Column Flange OD

381

A1

Head Height

637

D

1 Stage Length

444.5

P

Column Flange PCD

346.1

A2

Disch C/L Height

279

E

2 Stage Length

730.3

Q

Column Flange Hole Dia.

14.3

A3

Flng Face to Vert C/L

279

F

Bellmouth Length

158.8

R

Mount Plate Square

609.6

A4

Strainer Length

228.6

G

Running Ring Length

98.4

S

Mount Plate Thickness

15.9

A5

Centre Brg Holder Thkns

12.7

H

Stator Length

187.3

T

Mount Plate Hole Crs.

533.4

A6

Support Channel

50.8

I

Adaptor Length

-

U

Mount Plate Hole Dia.

17.5

A7

Drive Column Dia.

177.8

J

Impeller Shaft Length

812.8

V

Discharge Flange OD

387.4

A8

Extension Gland Stool

381

K

Impeller Shaft Diameter

38.1

W

Discharge Flange PCD

346.1

L

Stator Flange Diameter

381

X

Disch Flng Hole Dia.

14.3

B1

Column

Water Lube

305

610

914

1219

Oil  Lube

305

610

914

1219

2438

B2

Extended Drive Column

Water Lube

305

610

914

1219

Oil  Lube

305

610

914

1219

2438
